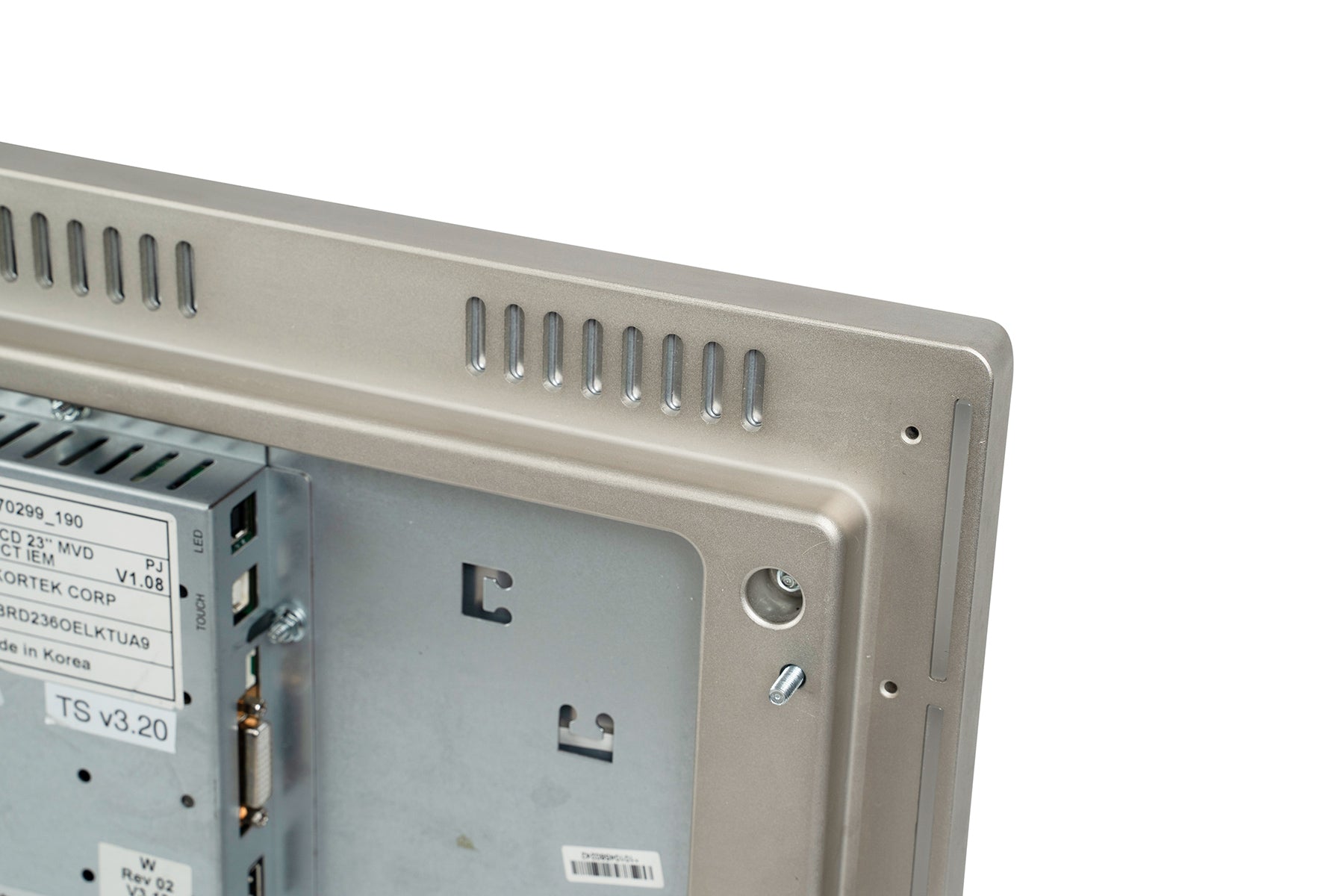

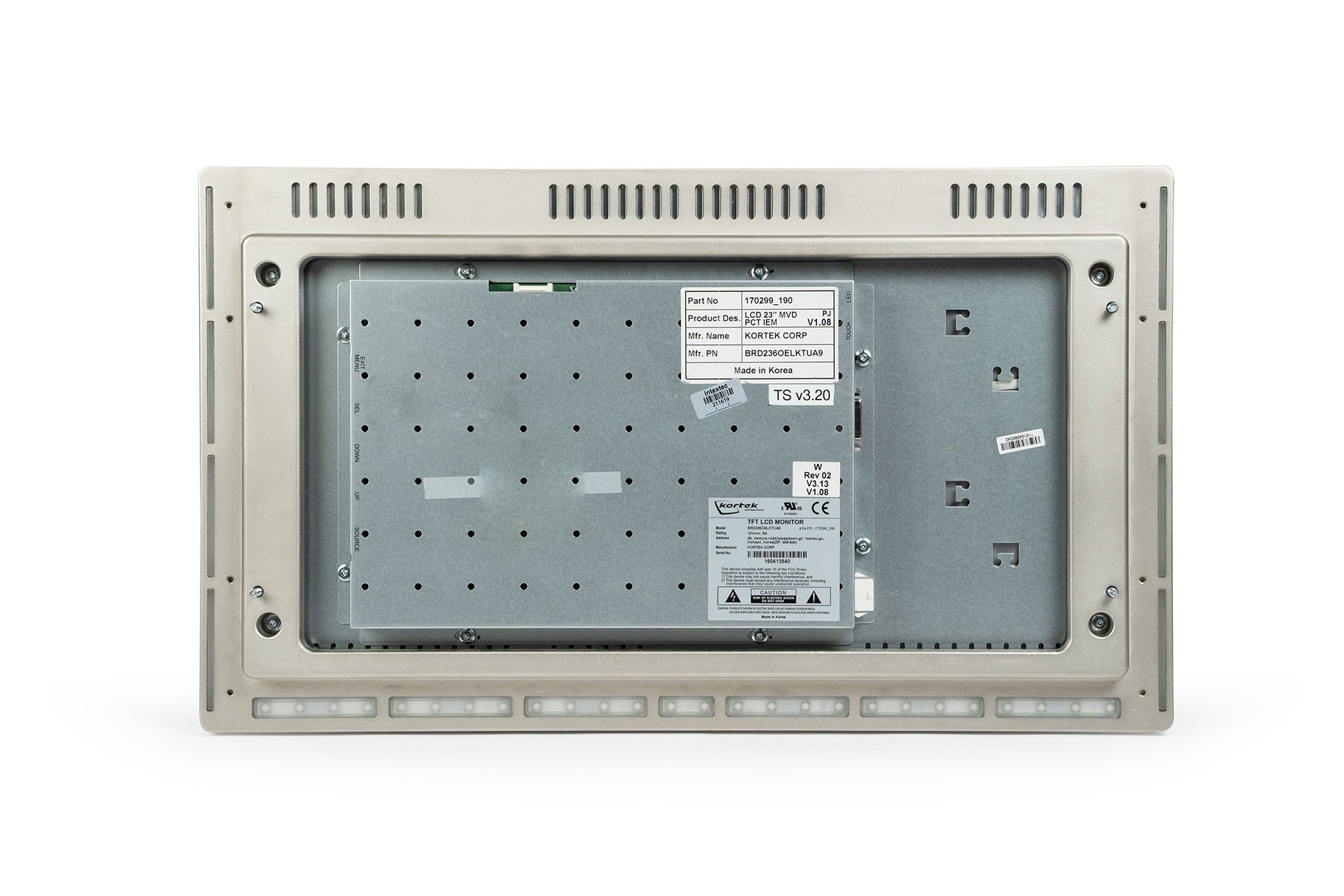

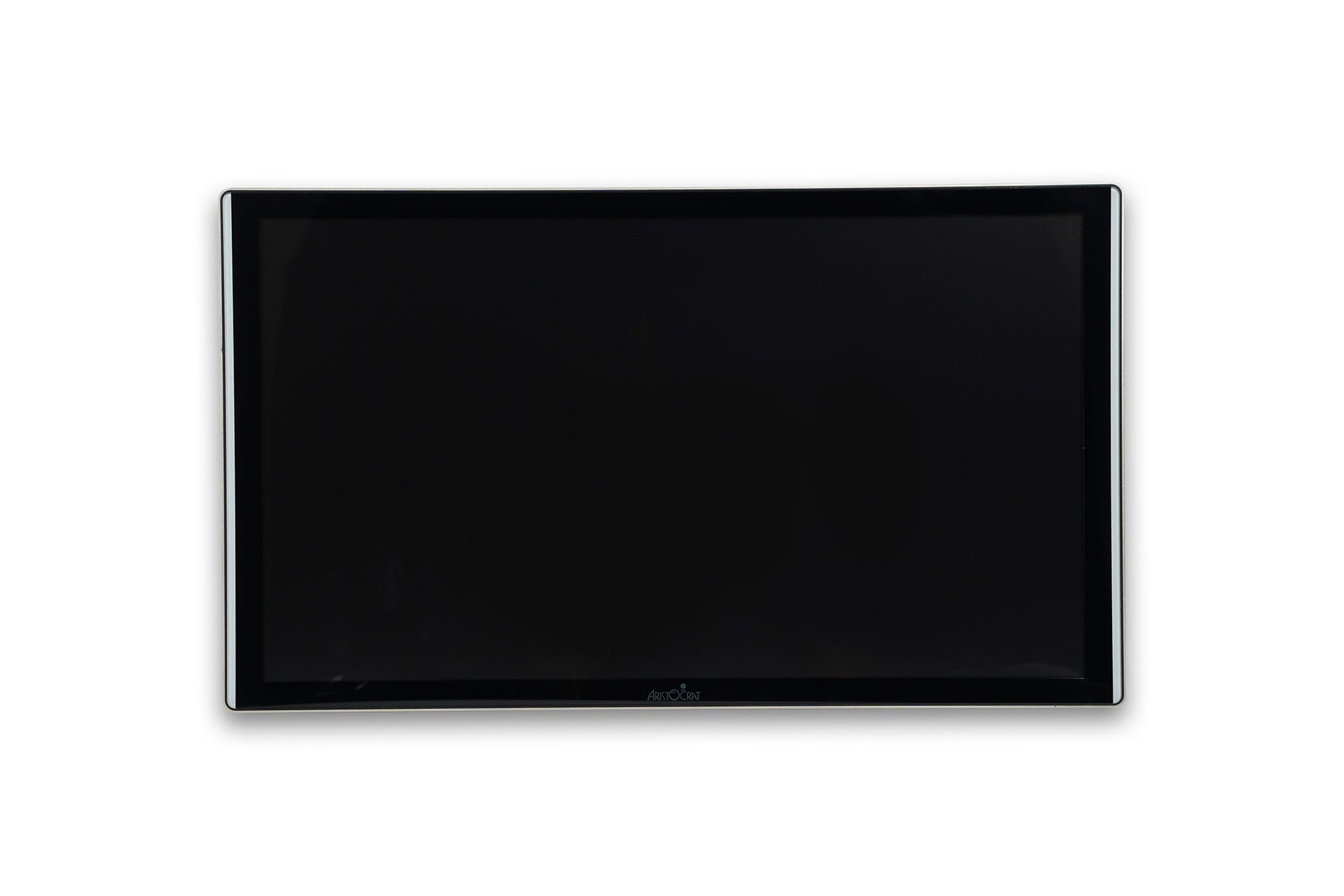

Aristocrat Helix 23" Main LCD Monitor with touch

The Aristocrat Helix 23" Main LCD Monitor is a high-quality, touch-enabled display designed for use in Gen8 Helix upright and slant gaming cabinets. Featuring full HD resolution and 10-point projected capacitive (P-CAP) touch technology, it delivers responsive interaction and vibrant visuals for immersive gameplay. This monitor is a direct drop-in replacement, offering plug-and-play compatibility with existing cabinet hardware.

Built with LED backlighting and a robust interface that includes USB and RS232 options, it supports reliable performance in demanding casino environments.

Key Specifications

• Screen Size: 23 inches

• Resolution: 1920 × 1080 (Full HD)

• Aspect Ratio: 16:9

• Touch Technology: Projected Capacitive (P-CAP)

• Touch Points: 10-point multi-touch

• Brightness: 250 cd/m²

• Contrast Ratio: 1000:1

• Viewing Angle: 170° horizontal / 178° vertical

• Dimensions: 561 mm × 326 mm × 44 mm

• Weight: 7.6 kg

• Interfaces: USB-B Female, RS232 DB9 Female (varies by model)

• Operating Temperature: 0°C to 45°C

• Storage Temperature: -20°C to 60°C

• Manufacturer Part Numbers: BRD236OELKTUA9
