Intextec

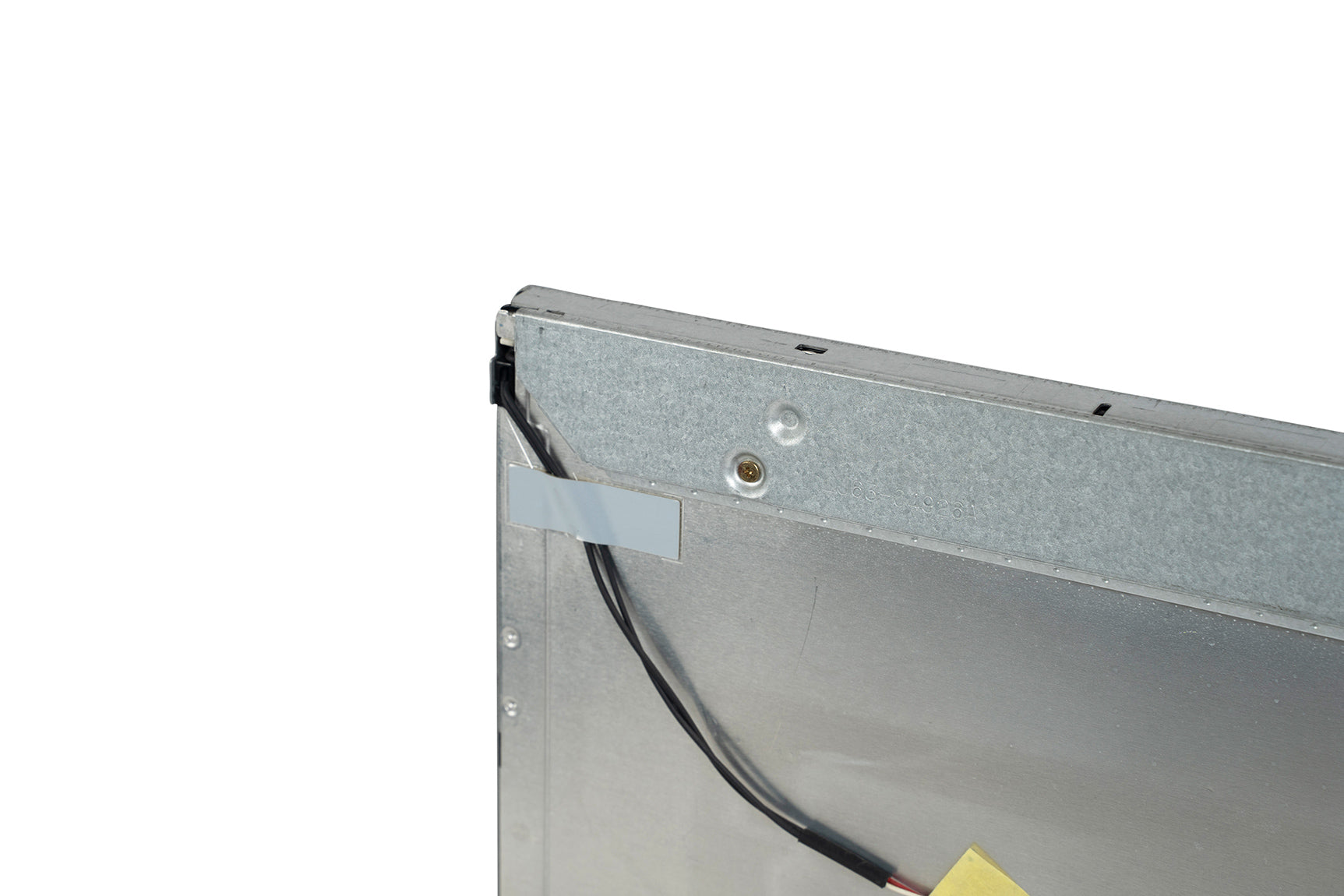

LCD panel to suit Ainsworth A560 - LTM220MT05
Pickup available at Intextec
Usually ready in 24 hours
LTM220MT05 LCD panel, suitable for the A560, has the following specifications:
- Panel Type: a-Si TFT-LCD
- Resolution: 1680 x 1050 (WSXGA+)
- Pixel Format: RGB Vertical Stripe
- Active Area: 473.76 mm (W) x 296.1 mm (H)
- Bezel Opening: 477.7 mm (W) x 300.1 mm (H)
- Backlight: CCFL
- Luminance: 250 cd/m²
- Contrast Ratio: 1000:1
- Viewing Angle: 170° (H) / 160° (V)
- Response Time: 5 ms
- Operating Temperature: 0 to 50°C
- Storage Temperature: -25 to 60°C
