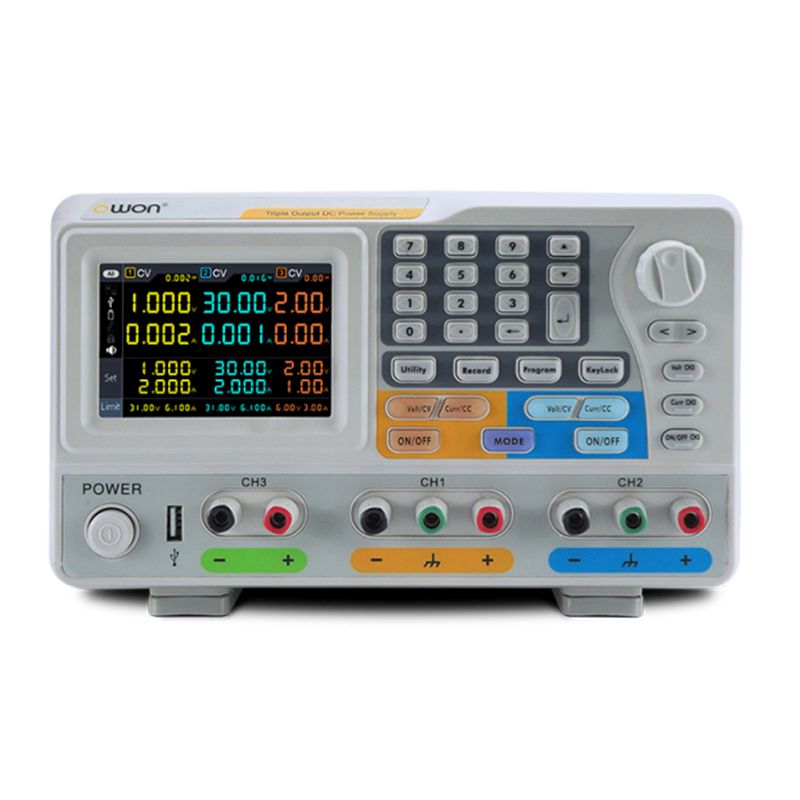

Owon ODP3033 Programmable DC Power Supply 0-30V 0-3A

SKU :
Type : NEW

Pickup available at Intextec

Usually ready in 24 hours

Overview & Key Features

The Owon ODP3033 is a single-channel, linear, programmable DC power supply with 0-30V and 0-3A output. It features a 3.5-inch color display, USB/LAN connectivity, and independent voltage/current setting knobs, making it suitable for R&D, education, and lab environments.

General Specifications



Feature Specification
Model ODP3033
Type Linear, Programmable
Channels 1 (Single Output)
Display 3.5-inch TFT-LCD color screen
Resolution Voltage: 10 mV, Current: 1 mA
Readback Accuracy Voltage: ±(0.1% + 20 mV), Current: ±(0.2% + 3 mA)
Interface USB (Virtual COM Port) and LAN (LXI)
Programming Speed ≤ 50 ms (Typical)
Ripple & Noise ≤ 3 mVrms / 5 mArms
Protections OVP, OCP, OTP
Cooling Temperature-controlled fan
Power Requirements AC 220V ±10%, 50/60 Hz (Check label for 110V variant)
Dimensions (WxHxD) Approx. 252 x 112 x 295 mm
Weight Approx. 5.0 kg

Output Specifications

Rated Output

  • Voltage: 0 - 30 V DC

  • Current: 0 - 3 A DC

  • Power: 90 W maximum

Load Regulation

  • Voltage: ≤ 0.01% + 3 mV

  • Current: ≤ 0.1% + 3 mA

Line Regulation

  • Voltage: ≤ 0.01% + 3 mV

  • Current: ≤ 0.1% + 3 mA

Setting & Readback Accuracy *(After 30 min warm-up, at 23°C±5°C)*



Parameter Setting Accuracy Readback (Display) Accuracy
Voltage ±(0.1% + 20 mV) ±(0.1% + 20 mV)
Current ±(0.2% + 3 mA) ±(0.2% + 3 mA)

Transient Response Time

  • Recovery to within 30 mV of rated voltage after a 50% load change: ≤ 50 µs (Typical).

Features & Functions

  1. Display: Shows set voltage/current (Vset/Iset) and actual output voltage/current (Vout/Iout) simultaneously.

  2. Operation Modes:

    • Independent (CV/CC): Constant Voltage or Constant Current mode.

    • Series & Parallel: Multiple ODP3033 units can be connected for higher voltage (series) or higher current (parallel) via master/slave communication ports (rear panel).

  3. Memory: 5 groups of preset parameters (voltage/current limit) for quick recall.

  4. Timer Function: Can set output ON/OFF duration (1 second to 99 hours).

  5. Output Control: Front panel output ON/OFF button.

  6. Protections:

    • Over Voltage Protection (OVP): User-settable limit (1V above set V to max).

    • Over Current Protection (OCP): User-settable limit (0.1A above set I to max).

    • Over Temperature Protection (OTP): Automatic shutdown.

Connectivity & Programming

  • USB (Device Port): Standard USB-B port. Uses a virtual COM port driver for communication via SCPI commands.

  • LAN (LXI): RJ-45 port. Supports LXI Core 2016 specification, TCP/IP, and VXI-11. Can be discovered and controlled over a network.

  • External Analog Control (Optional): Rear-panel D-sub connector allows voltage/current to be programmed via 0-5V or 0-10V analog signals.

  • Master/Slave Port: DB-9 port for interconnecting multiple units in series or parallel configurations.

Front & Rear Panel

Front Panel:

  • Color TFT Display

  • Voltage/Current Setting Knobs

  • Numeric Keypad

  • Function Buttons (Output On/Off, Memory, Timer, OVP/OCP, System)

  • Output Terminals: 4-mm safety banana jacks (Positive, Negative, Earth Ground)

Rear Panel:

  • Power Switch & AC Inlet

  • USB & LAN Ports

  • Master/Slave Communication Port (DB-9)

  • Analog Control Port (DB-15)

  • Cooling Fan Vent

Typical Package Includes

  • Owon ODP3033 Power Supply Unit

  • Power Cord

  • USB Cable

  • Test Leads (Pair with alligator clips)

  • User Manual & Software CD/Download Card

Important Notes

  • Linear Design: Provides very clean, low-noise output but is less energy-efficient and generates more heat than switching designs.

  • Max Power: The output is 90W maximum. For example, you cannot get 30V and 3A (90W) simultaneously at all times due to thermal limits; the unit will derate if overheated.

  • Safety: The chassis is grounded through the power cord. Always connect the earth terminal for safety
