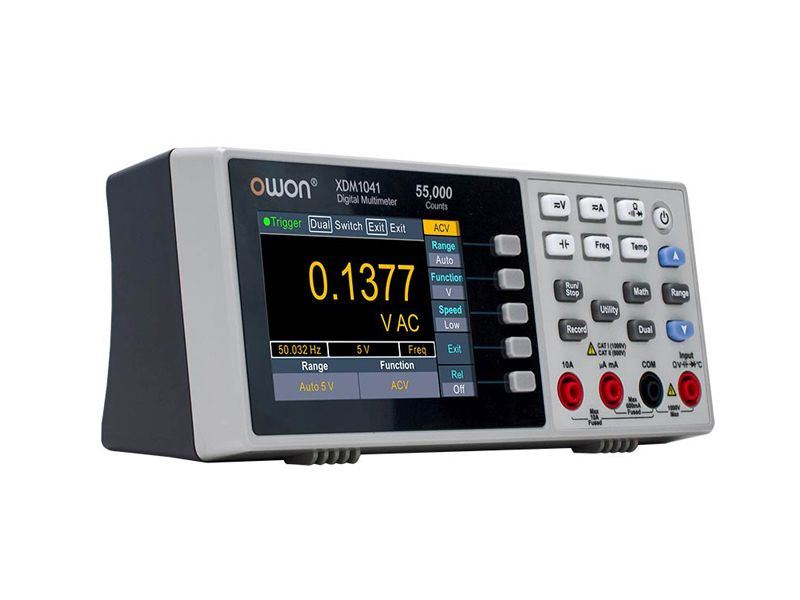

Owon XDM1041 Bench-Type Digital Multimeter

Name: Owon XDM1041 Bench-Type Digital Multimeter
Brand: Intextec
Price: 322.0 AUD
Availability: InStock

SKU :

Type : NEW

Product variants

Quantity

Pickup available at Intextec

Usually ready in 24 hours

Owon XDM1041 Key Features & Overview

The XDM1041 is a 5½ digit (220,000 count) bench-top digital multimeter (DMM) with USB, LAN (LXI), and optional WiFi connectivity for remote control and data logging. It's designed for lab, educational, and repair bench use, offering high accuracy, a color display, and a wide range of measurement functions.

Detailed Technical Specifications

Display: 4.3-inch TFT-LCD color display (480 x 272 pixels)
Digits/Counts: 5½ digits, 220,000 counts
Measurement Speed: Up to 50 readings per second (at 5½ digits, slower at higher precision)
Integration Time: 0.2ms to 10s (PLC: 0.006 to 10)
Interface: USB Device, LAN (LXI 2016 compliant), and optional WiFi module (sold separately, plugs into rear).
True RMS: Yes (for AC measurements)
DC Voltage Accuracy: Up to 0.015% (90-day specification)
Operating Temperature: 0°C to 40°C, <80% RH
Power Supply: 100-240V AC, 50/60Hz (Internal) or 12V DC input (rear).
Dimensions (W x H x D): Approx. 250 x 105 x 280 mm
Weight: Approx. 1.9 kg

Overview & Key Features

The Owon XDM1041 is a 5½-digit (220,000-count) bench-top multimeter designed for lab, workshop, and educational use. It stands out for its 4.3-inch color TFT display, LAN (LXI) and USB connectivity, and optional WiFi, allowing for advanced remote control and data logging.

General Specifications

Feature	Specification
Display	4.3-inch TFT-LCD color (480 x 272 pixels)
Digits/Counts	5½ digits, 220,000 counts
Basic DC Accuracy	±(0.015% + 8 counts) for 90 days
Measurement Speed	Up to 50 readings/second (at 4½ digits)
Interfaces	USB 2.0 (Device), LAN (LXI 2016 compliant), Optional WiFi (via plug-in module)
True RMS	Yes
Power Supply	100-240V AC, 50/60Hz or 12V DC (rear input)
Dimensions (WxHxD)	250 x 105 x 280 mm
Weight	~1.9 kg

Detailed Measurement Ranges & Accuracy

(Conditions: 23°C ±5°C, <80% RH; accuracy for 90 days unless noted)

1. DC Voltage

Range	Accuracy	Input Impedance
220.000 mV	±(0.015% + 8)	>10 GΩ
2.20000 V	±(0.015% + 8)	>10 GΩ
22.0000 V	±(0.015% + 8)	>10 GΩ
220.000 V	±(0.015% + 8)	>10 GΩ
1000.00 V	±(0.025% + 8)	10 MΩ

2. AC Voltage (True RMS)

Range	Accuracy (45 Hz - 1 kHz)	Bandwidth
220.000 mV	±(0.15% + 80)	3 Hz - 300 kHz
2.20000 V	±(0.15% + 80)	3 Hz - 300 kHz
22.0000 V	±(0.15% + 80)	3 Hz - 300 kHz
220.000 V	±(0.15% + 80)	3 Hz - 300 kHz
750.000 V	±(0.15% + 80)	3 Hz - 300 kHz

3. DC Current

Range	Accuracy	Burden Voltage / Protection
220.000 µA	±(0.05% + 20)	<0.15V
2.20000 mA	±(0.05% + 20)	<0.15V
22.0000 mA	±(0.05% + 20)	<0.15V
220.000 mA	±(0.05% + 20)	<0.15V
2.20000 A	±(0.15% + 20)	<0.15V; Fused (Front)
10.0000 A	±(0.15% + 20)	<0.15V; Fused (Front)

4. AC Current (True RMS)

Range	Accuracy (45 Hz - 1 kHz)
220.000 µA to 220.000 mA	±(0.3% + 80)
2.20000 A	±(0.5% + 80)
10.0000 A	±(0.5% + 80)

5. Resistance (2-Wire & 4-Wire)

Range	4-Wire Accuracy (90-day)	Typical Test Current
220.000 Ω	±(0.02% + 12)	1 mA
2.20000 kΩ	±(0.02% + 12)	1 mA
22.0000 kΩ	±(0.02% + 12)	100 µA
220.000 kΩ	±(0.02% + 12)	10 µA
2.20000 MΩ	±(0.02% + 12)	1 µA
22.0000 MΩ	±(0.10% + 20)	0.1 µA
100.000 MΩ (2-Wire)	±(0.50% + 40)	-

6. Capacitance

Range	Accuracy
22.0000 nF to 22.0000 mF	±(0.5% + 50)

7. Frequency / Period

Range (via Voltage)	Accuracy	Minimum Sensitivity
3 Hz - 1 MHz	±(0.01% + 2)	<10 mV RMS

8. Other Functions

Function	Specification / Range
Continuity Beeper	Adjustable threshold (1Ω - 1kΩ); <1ms response
Diode Test	Test current: ~1 mA; O.C. Voltage: ~3.3V
Temperature	-200°C to 1372°C (via K-type thermocouple)

Connectivity & Control

LAN (LXI): Full LXI Core 2016 compliance. Includes a built-in web server for browser-based control and VXI-11 discovery.
USB: Virtual COM port (VCP) for easy communication via SCPI commands.
WiFi: Optional plug-in module (e.g., OW-APB110) adds wireless control.
PC Software: Includes Owon XDM Control Software for data logging (to CSV/TXT), real-time graphing, screen capture, and report generation.

Input Terminals & Protection

Terminal	Purpose	Protection / Fusing
Front: HI / LO	Voltage, Resistance, Diode, Frequency	1000V DC / 750V AC max input
Front: 10A	High Current Input	Fused: 10A/600V ceramic fast-blow (User-replaceable)
Rear: 4W-HI / 4W-LO	4-Wire Resistance Sense Leads	Same as Front HI/LO
Rear: I-HI / I-LO	Auxiliary Current Input (for mA/µA)	Fused: 0.5A/600V

Safety Rating: CAT I 1000V, CAT II 600V. This is a bench/workshop instrument and is not designed for direct measurement on high-energy AC mains distribution panels.
